Highlights

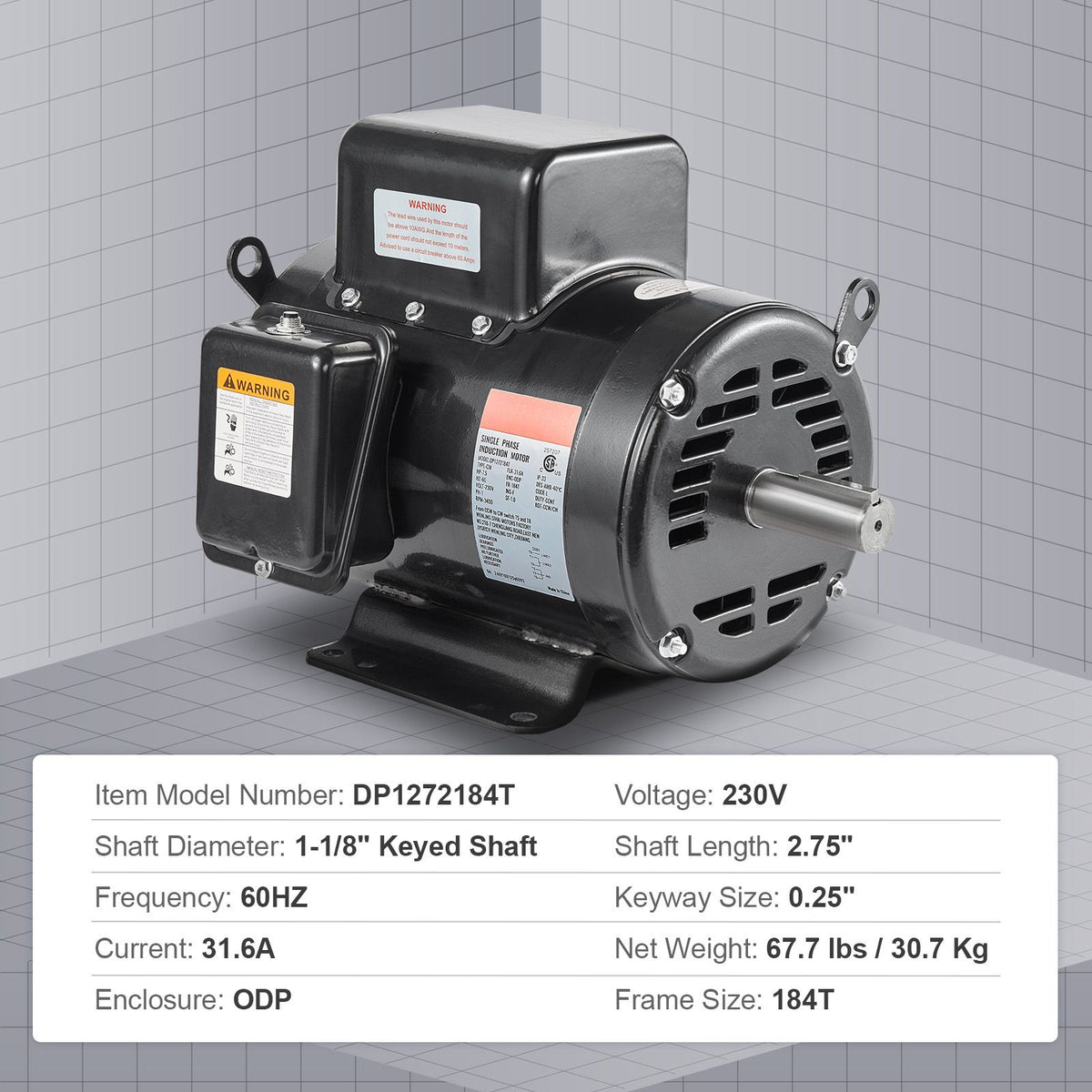

High Performance: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0.

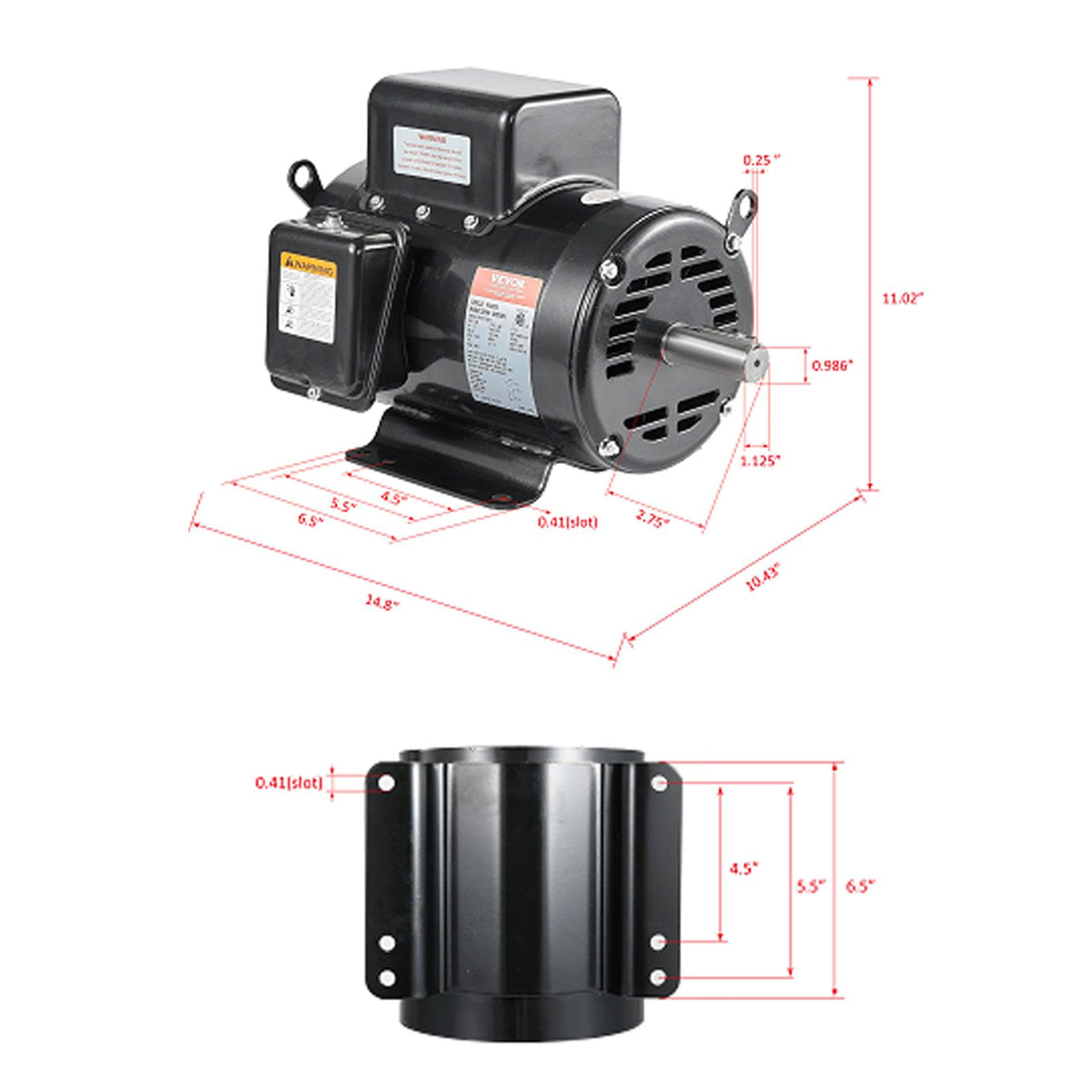

Frame Type: 184T Frame, 1-1/8"" Keyed shaft, 2.75"" Shaft length, 0.25"" Keyway Size.

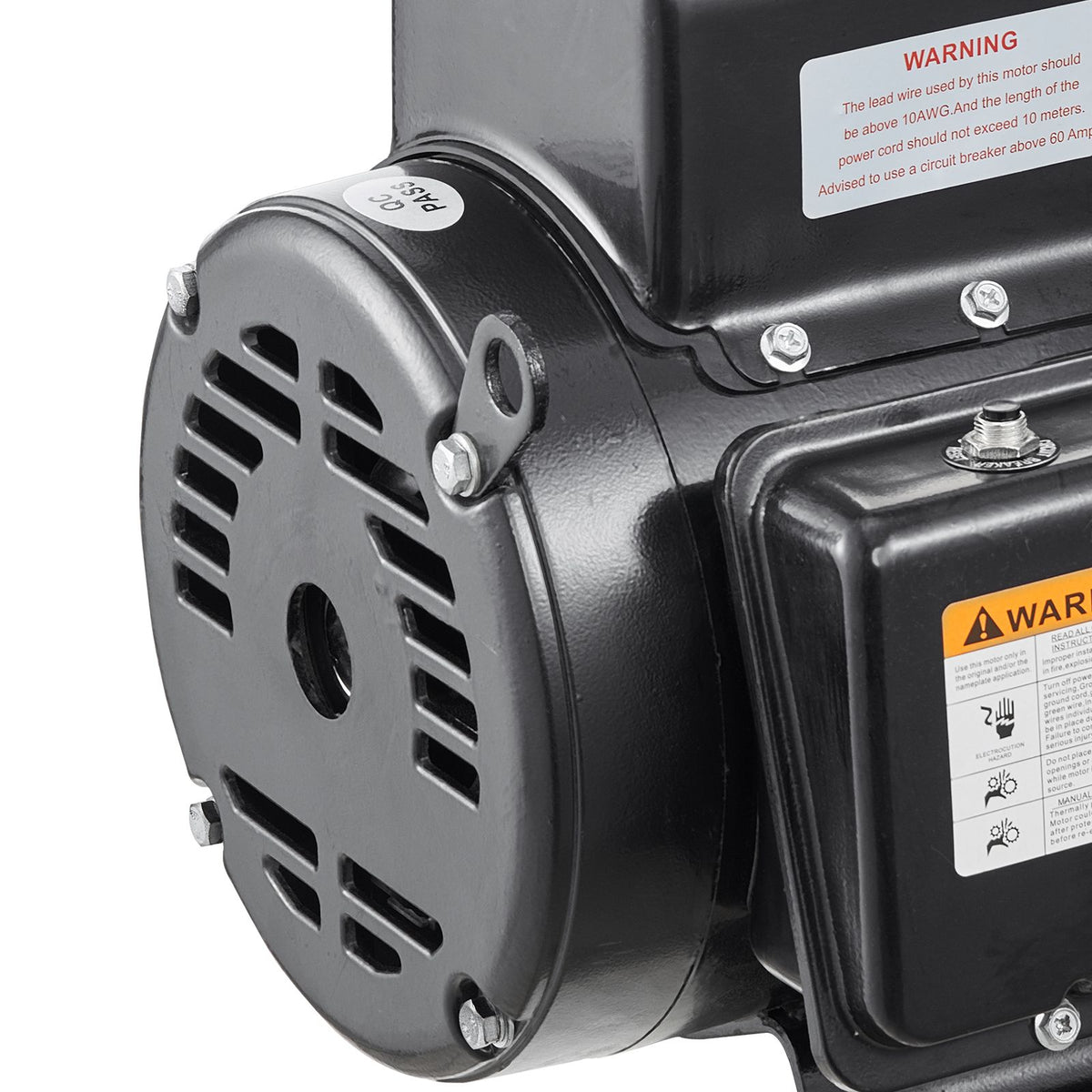

Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

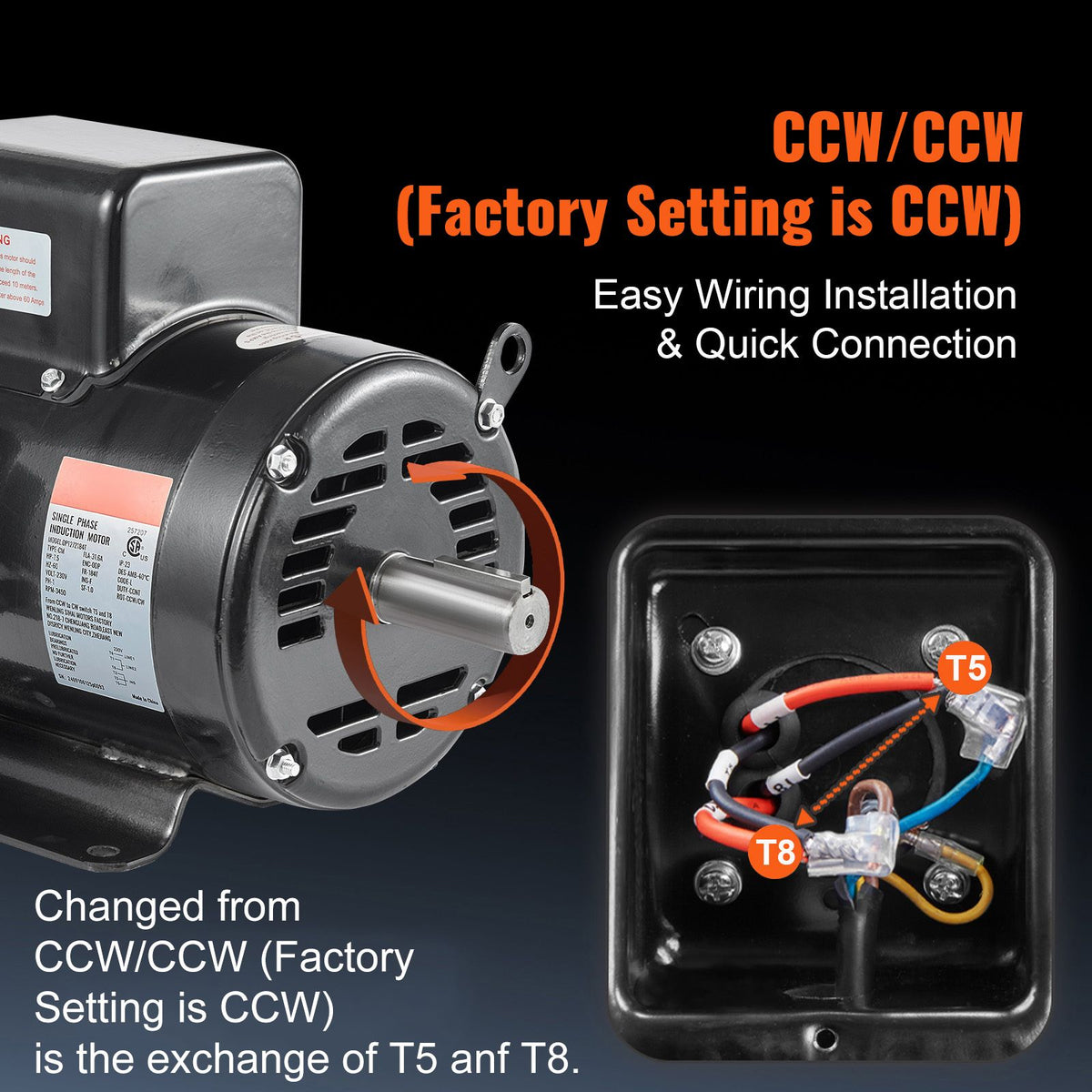

Dual Rotation Direction: Motor is Reversible for CCW/CCW rotation (Factory Setting is CCW), provides easier wiring operations.
Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)
Specification
Brand:VEVOR
Details

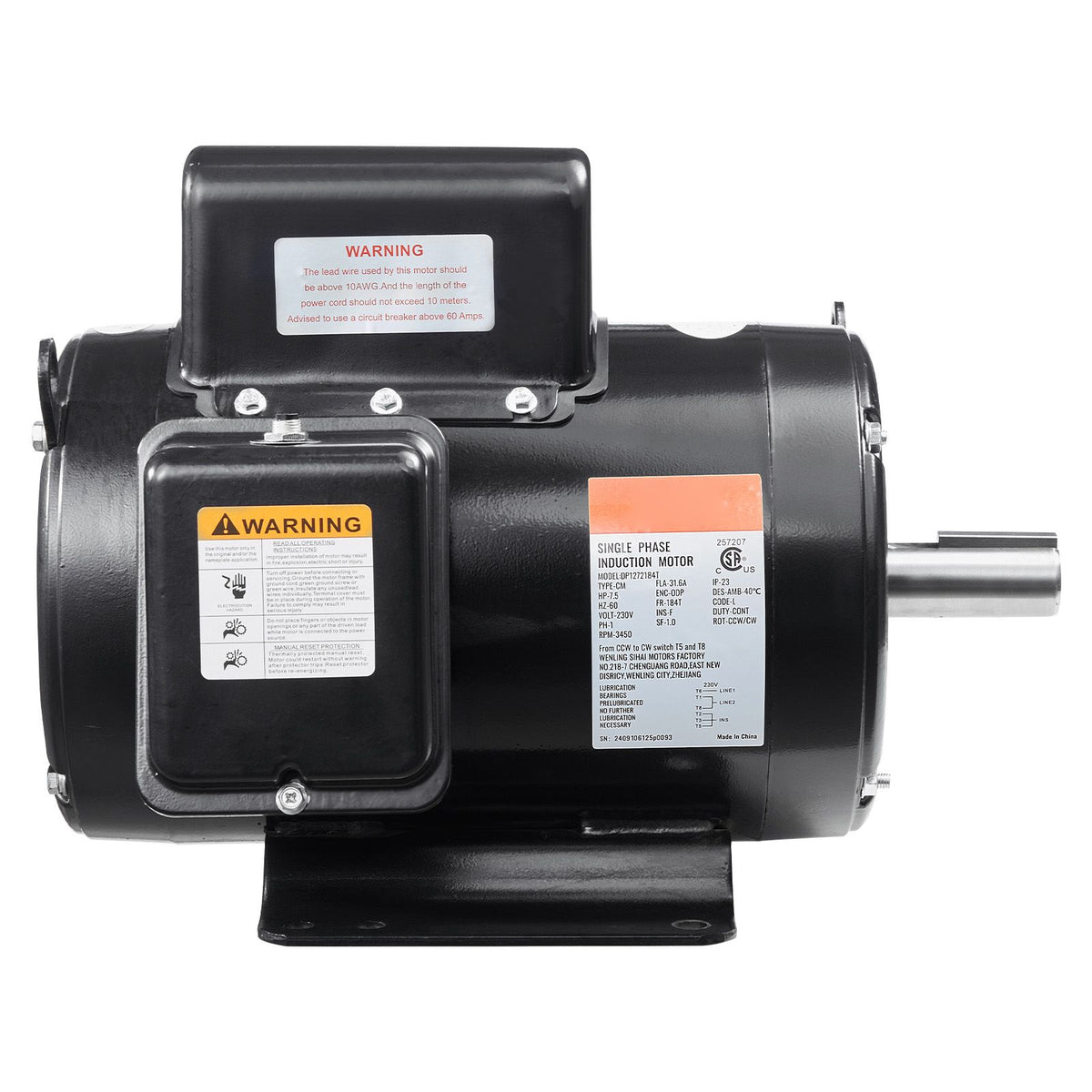

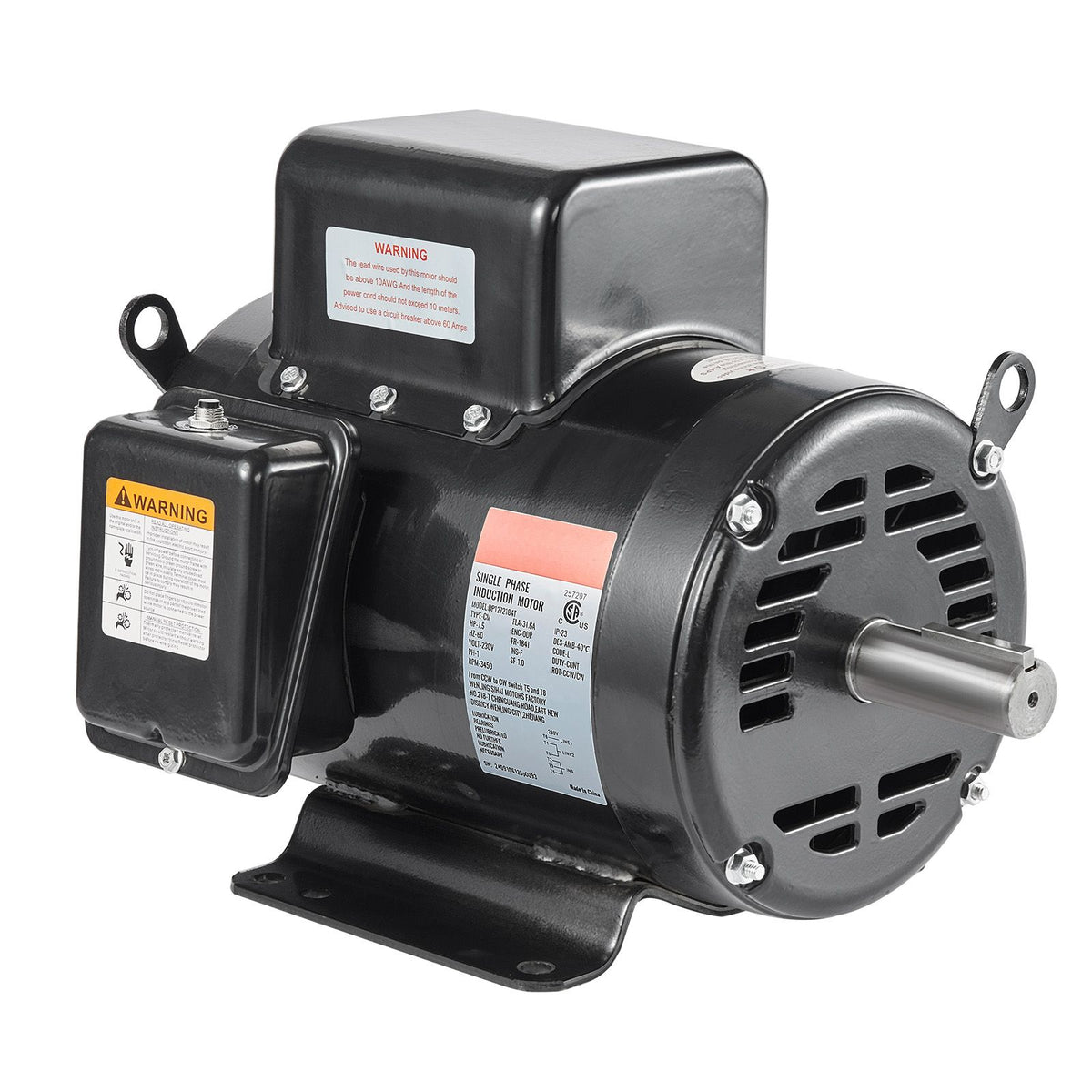

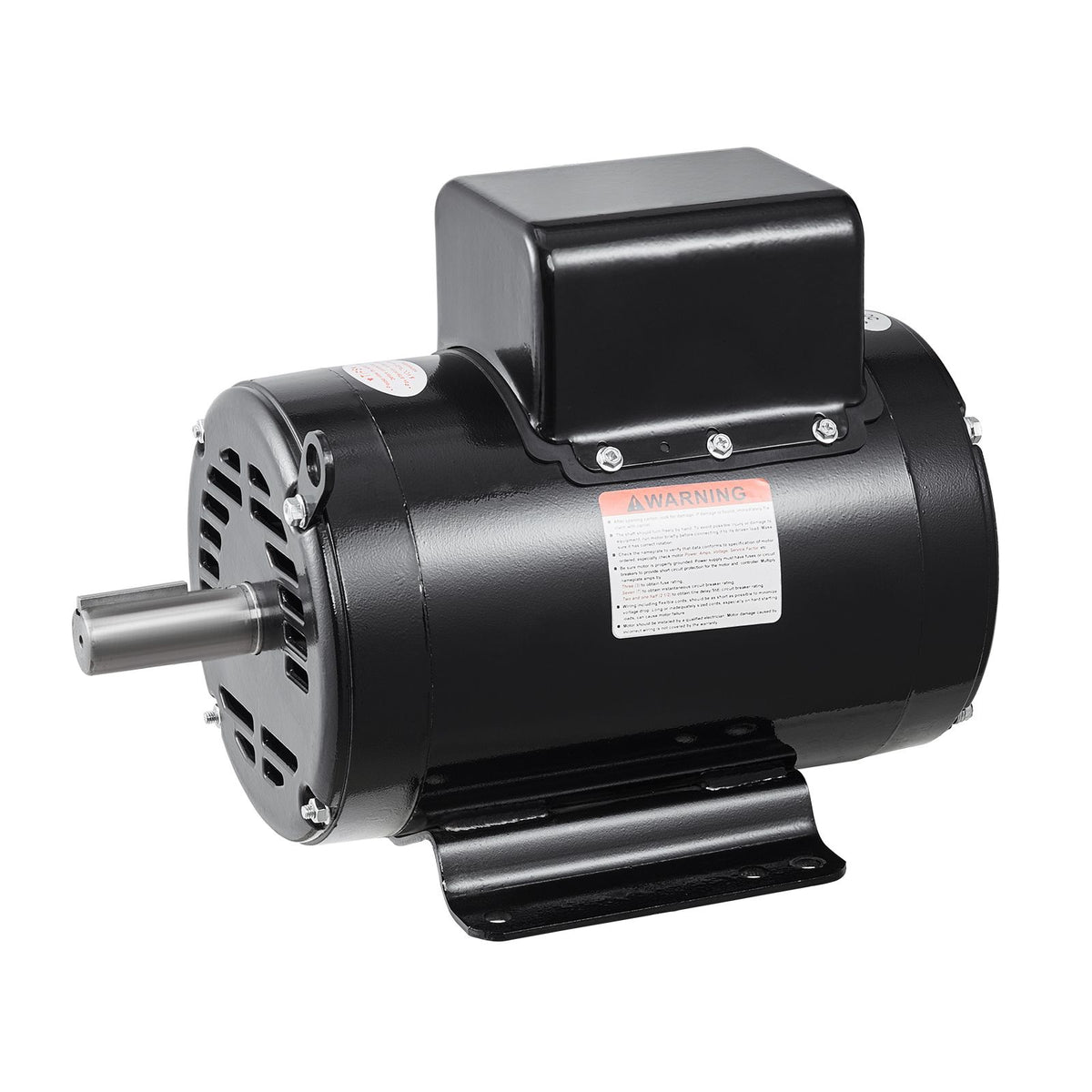

7.5HP Air Compressor Motor, 230V 31.6 Amps Electric Motor, 3450RPM 184T Frame, 1-1/8" Keyed Shaft, 2.75" Shaft Length for Air Compressors, Single Phase, CCW/CCW (Factory Setting is CCW)
