Highlights
High Performance: 3HP 3450 RPM, Single Phase, Full Load Amps: 15.5Amp, 230V 60Hz, SF: 1.0.

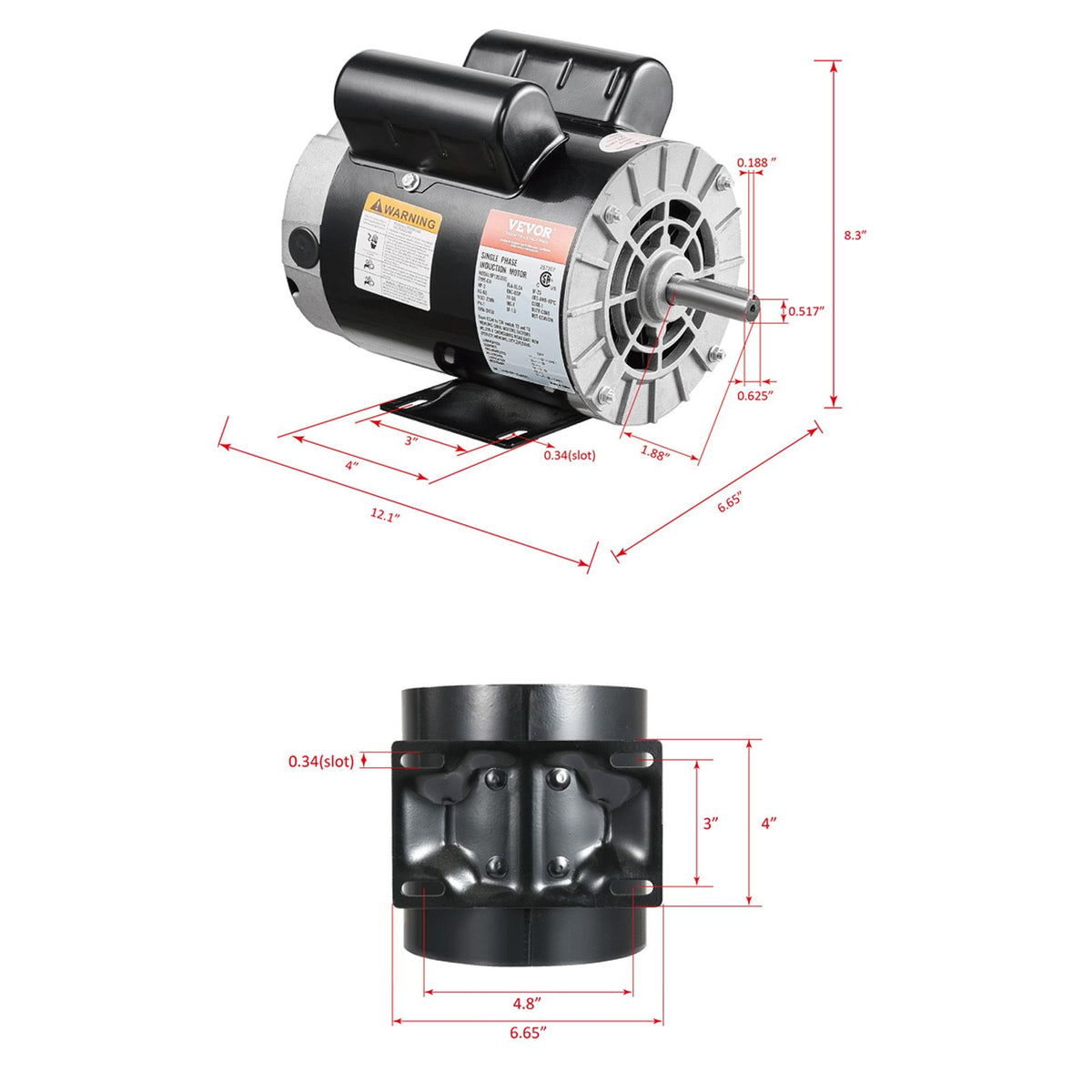

Frame Type: 56 Frame, 5/8"" Keyed shaft, 1.88"" Shaft length, 0.188"" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 40 amps.)
Specification
Brand:VEVOR
Details

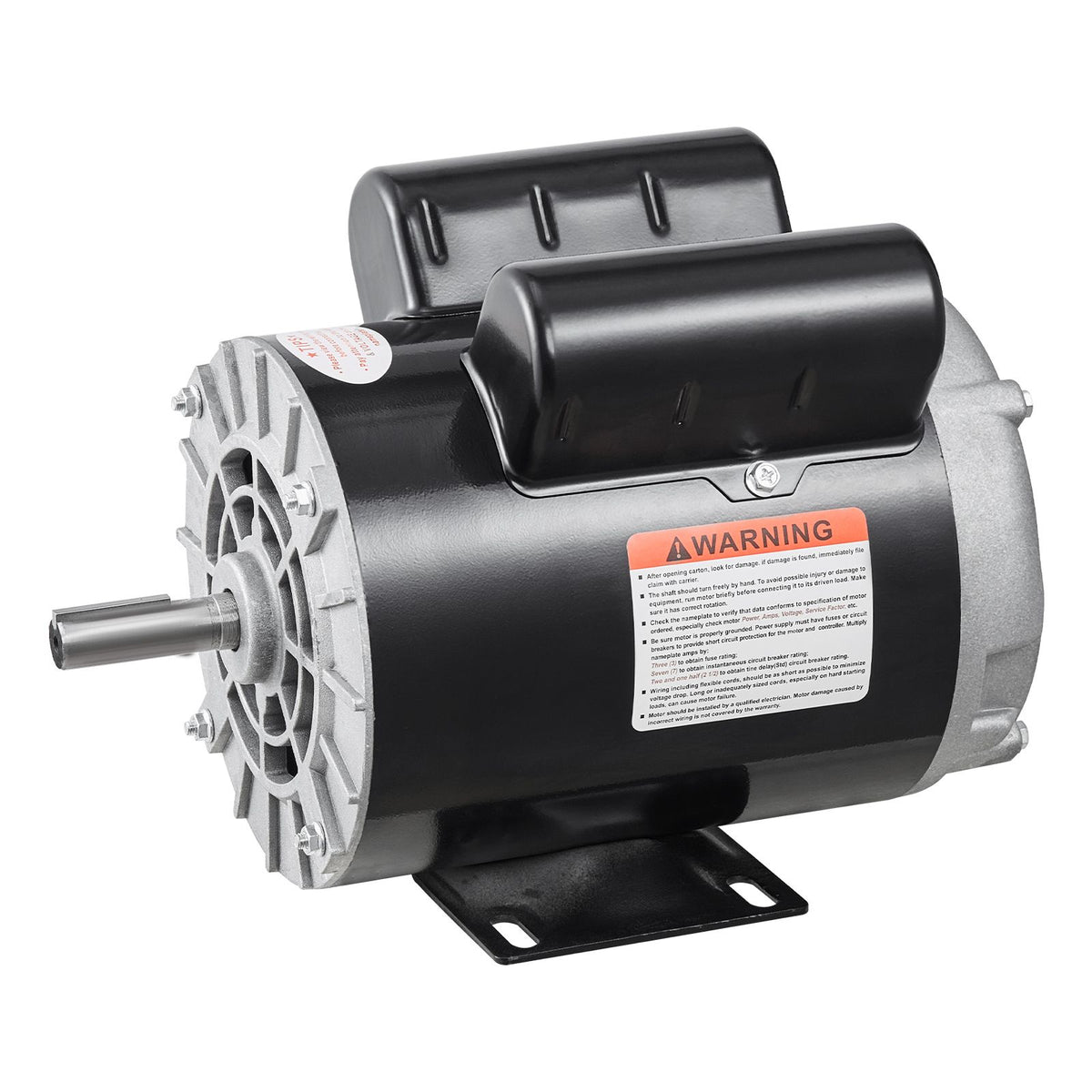

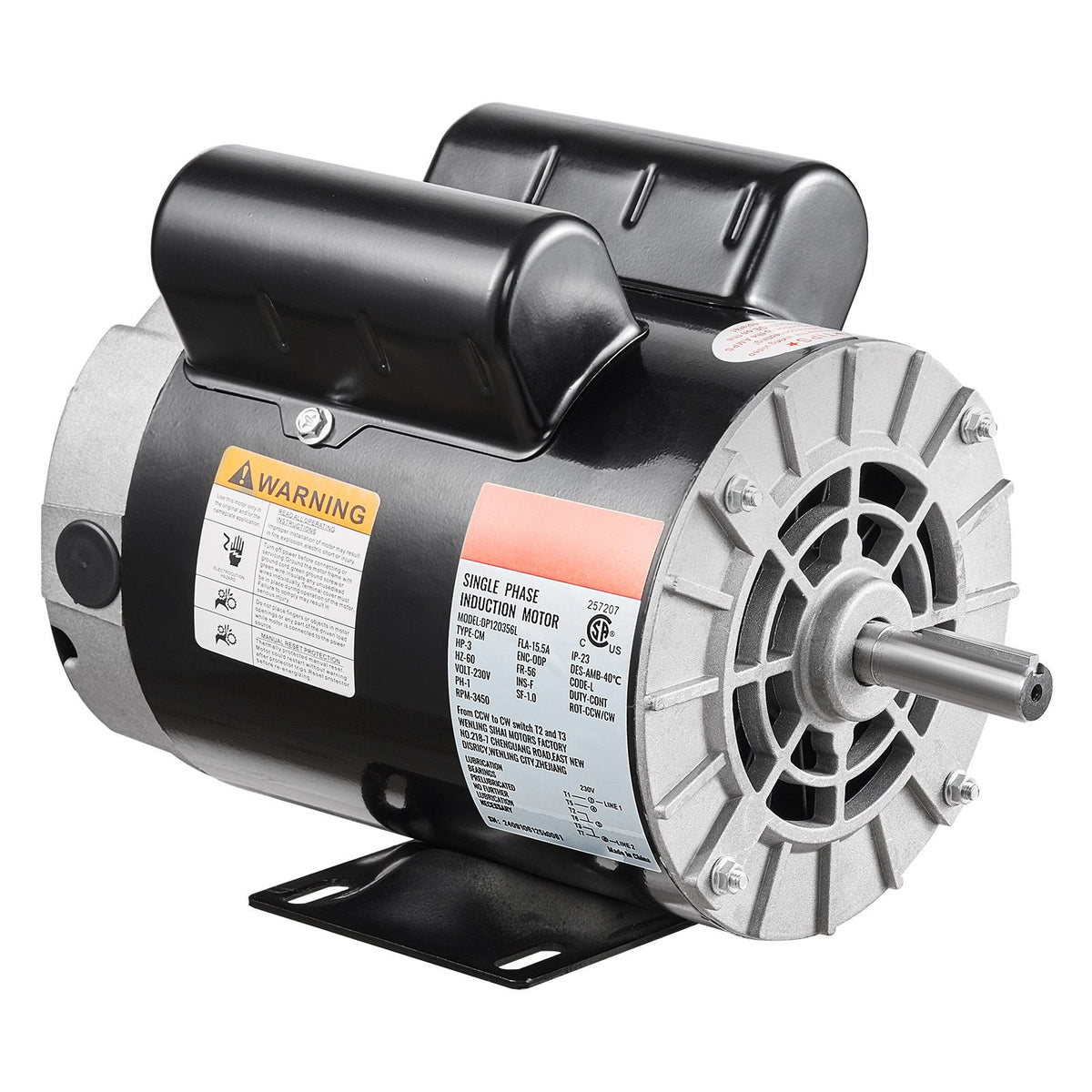

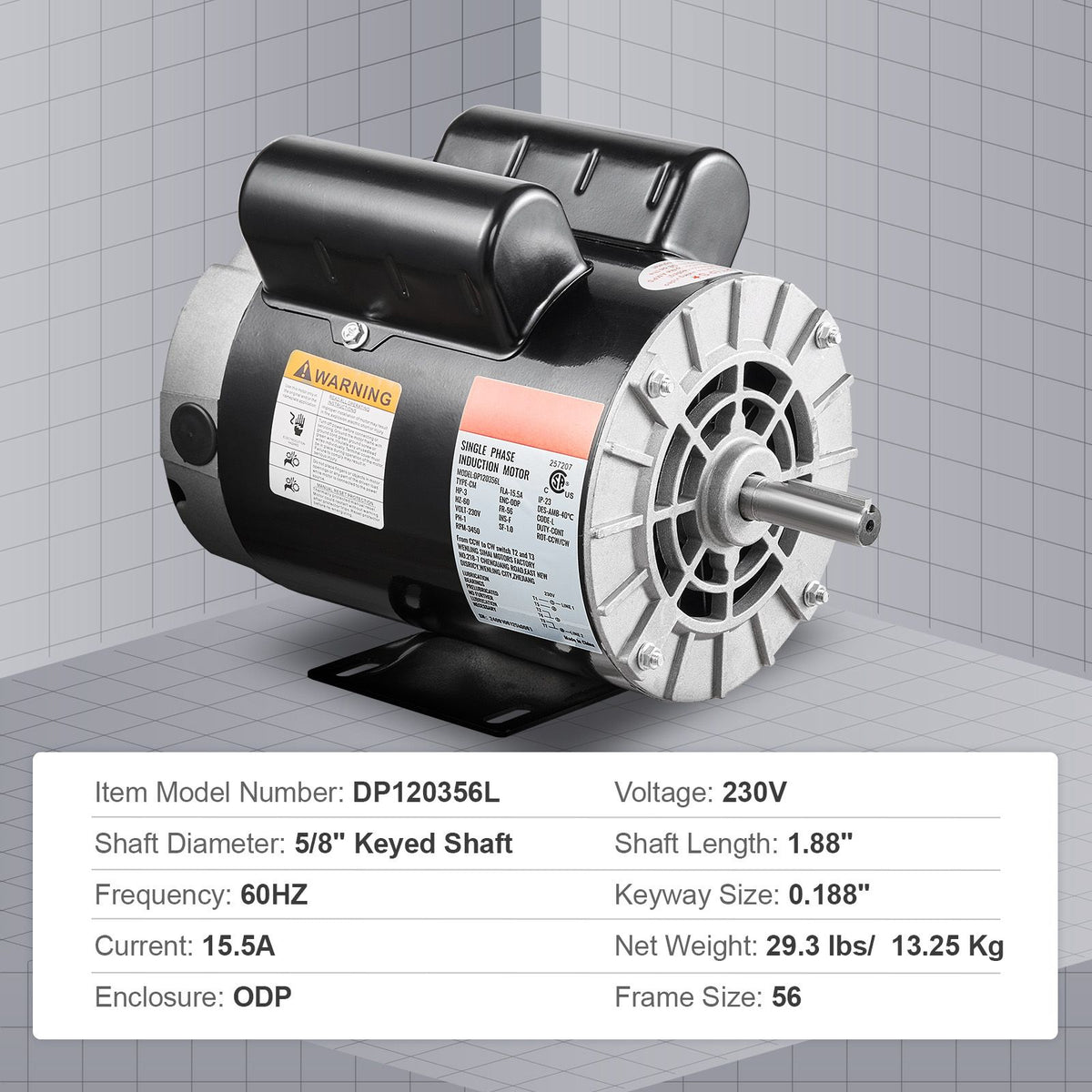

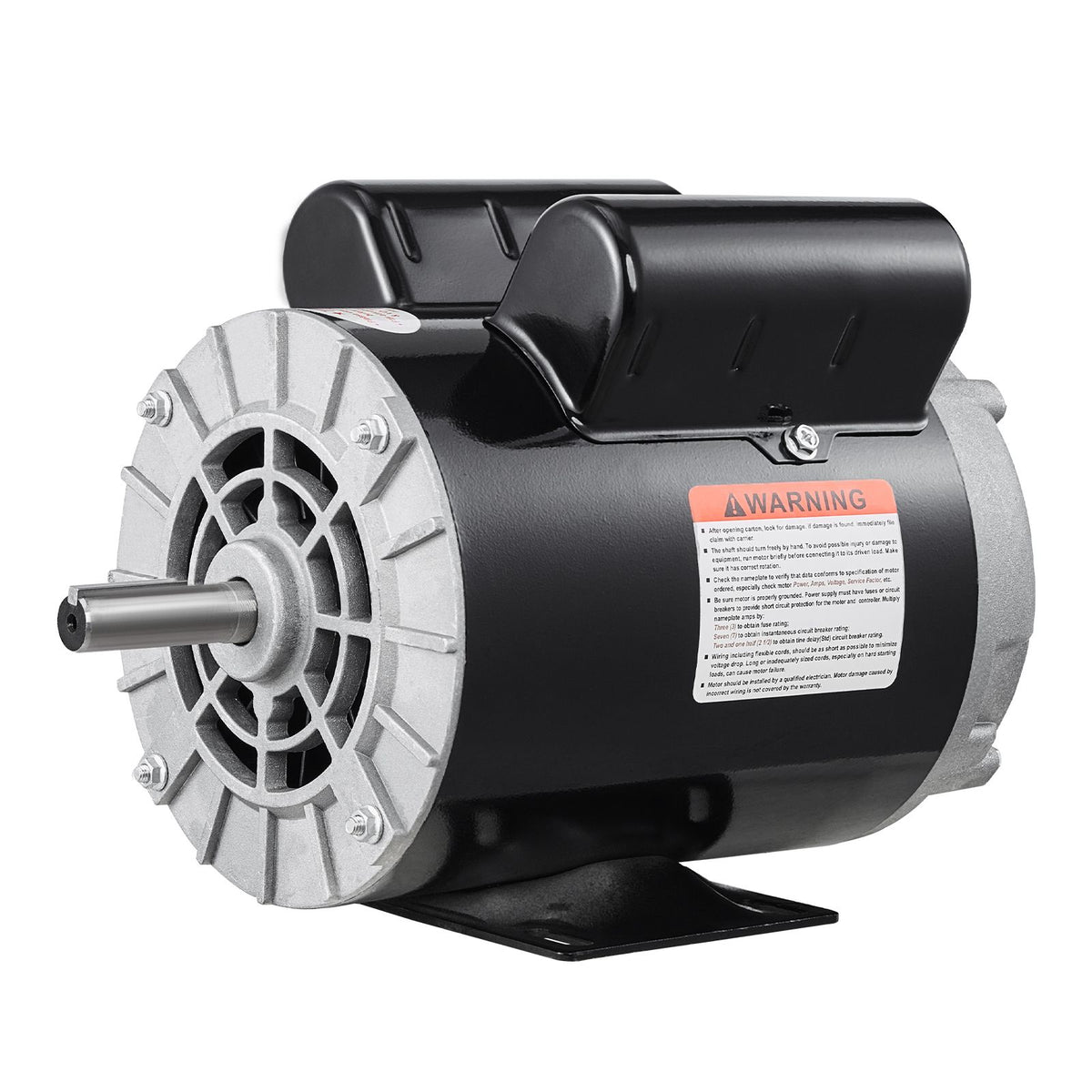

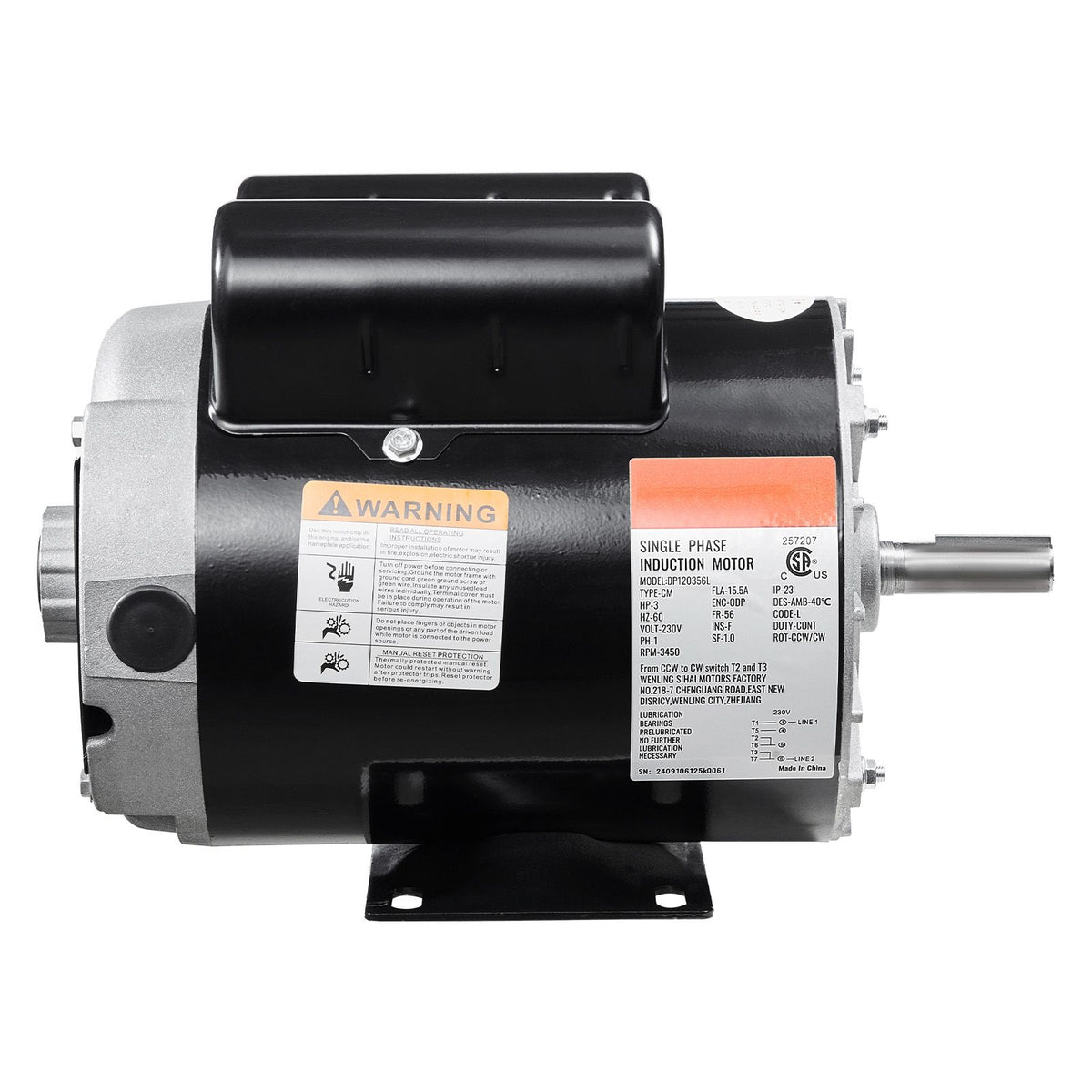

3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
