3/4\" X 500Ft PEX Tubing Oxygen Barrier O2 EVOH Pex-B Red Hydronic Radiant Floor Heat Heating System Pex Pipe Pex Tube (3/4\" O2-Barrier, 500Ft/Red)

Highlights

[RELIABLE MATERIAL]- Type: Oxygen-Barrier; Color: Red; Nominal Diameter: 3/4""; Total Length: 500ft. Outside Diameter: 0.86""; Inner Diameter: 0.66""; Tube Thickness: 0.1""; Keep quick & constant hot/cold water flows. Made of PEX material, non-toxic, crack-resistant, leak-proof. Perfect for potable water or radiant floor water use.

[ROBUST O2 RESISTANT]- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. Heating system's service time can be greatly lengthened. Smooth inner pipe, anti- scaling quality, increase heat dissipation efficiency & speed for energy-saving.

[EFFORTLESS INSTALLATION]- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings.

[PREMIUM FLEXIBILITY]- Min.7"" bending radius, this radiant floor heating system is easy to bend for different ground situation. Big pressure capacity: 188-217psi at 68Fahrenheit; 101-108psi at 203Fahrenheit. Temperature Range: -45 to 110Celsius(-47Fahrenheit to 230Fahrenheit).

[DIVERSE USE SCENARIO]- Suit for home & commercial use, like: radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, ""Sandwich"" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc.

Specification

Brand:VEVOR

Details

3/4" PEX Tubing

This 500ft pex pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.

•

  Standards, Certifications & Approvals
•

  ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
•

  ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
•

  ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
•

  CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
•

  All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.

is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service



3/4" PEX Tube

Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 3/4"; Tube Length: 500ft, longer than normal products.

EVOH Oxygen Barrier

Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components.

7" Bending Radius

Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.7" bending radius(industry standard for 3/4" pipe) and excellent flexibility.

Various Tube Connection

Can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.

Different Installation Ways

Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; "Sandwich" type radiant heating; Snow & ice melting systems etc.

Wide Application Places

Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.

Specifications

•

  Type: PEX Tube(Oxygen Barrier)
•

  Total Length: 500ft
•

  Nominal Diameter: 3/4"
•

  Inside Diameter: 0.66"
•

  Outside Diameter: 0.86"
•

  Tube Thickness: 0.1"
•

  Pressure Ratings: 188-217psi at 65℉; 101-108psi at 203℉
•

  Temperature Range: -45 to 110℃( -47℉ to 230℉)
•

  Min.Bending Radius: 7" (industry standard for 3/4" PEX)
•

  ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
•

  UPC listed by IAPMO.
•

  SDR-9 dimensional standards.

Package Content

•

  1 x 500ft 3/4" Oxygen Barrier PEX Tube

is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

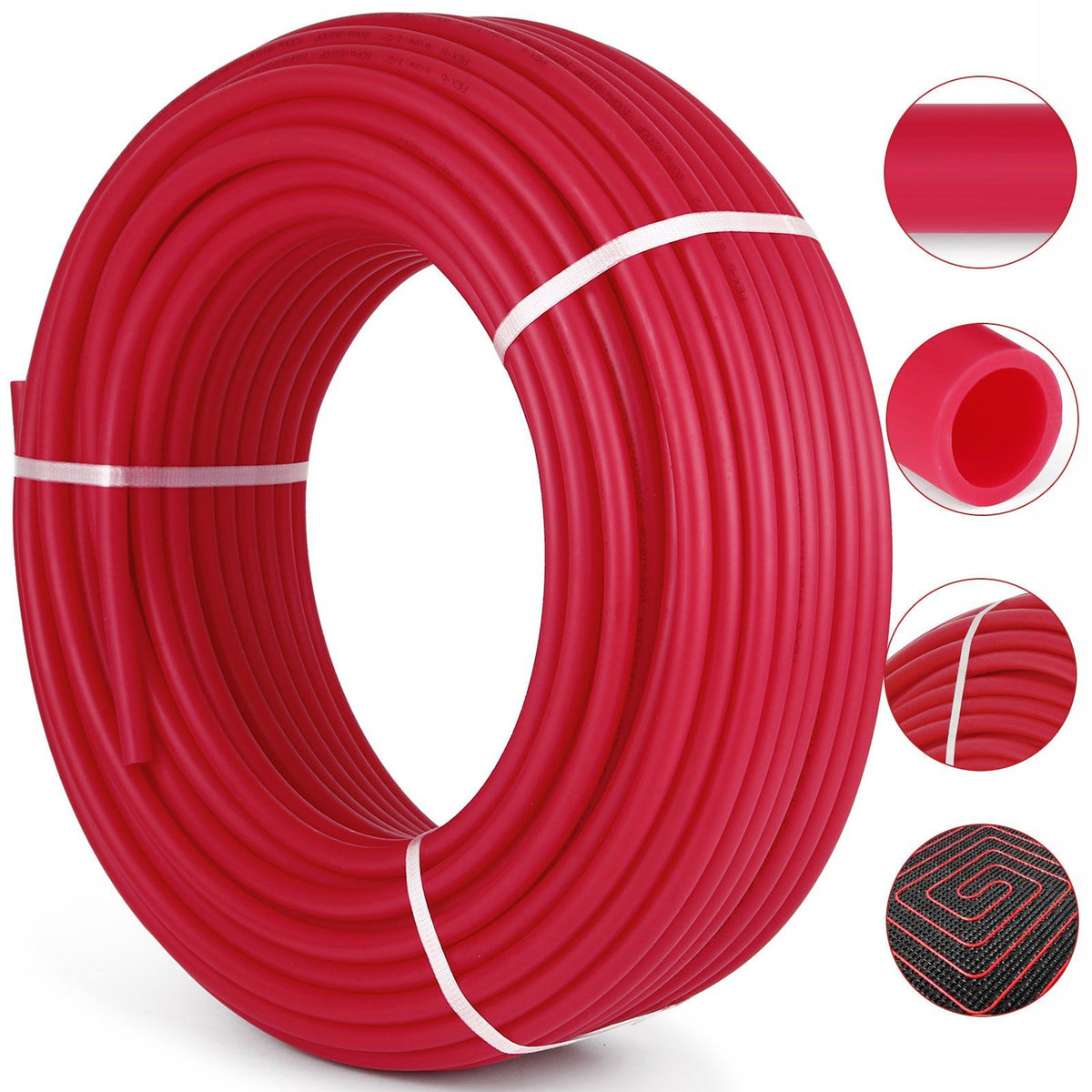

3/4" PEX Tubing

This 500ft pex pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.

• Standards, Certifications & Approvals
• ASTM F876: Standard specification for crosslinked polyethylene (PEX) tubing.
• ASTM F877: Standard specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
• ASTM F2023: Standard test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
• CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
• All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.

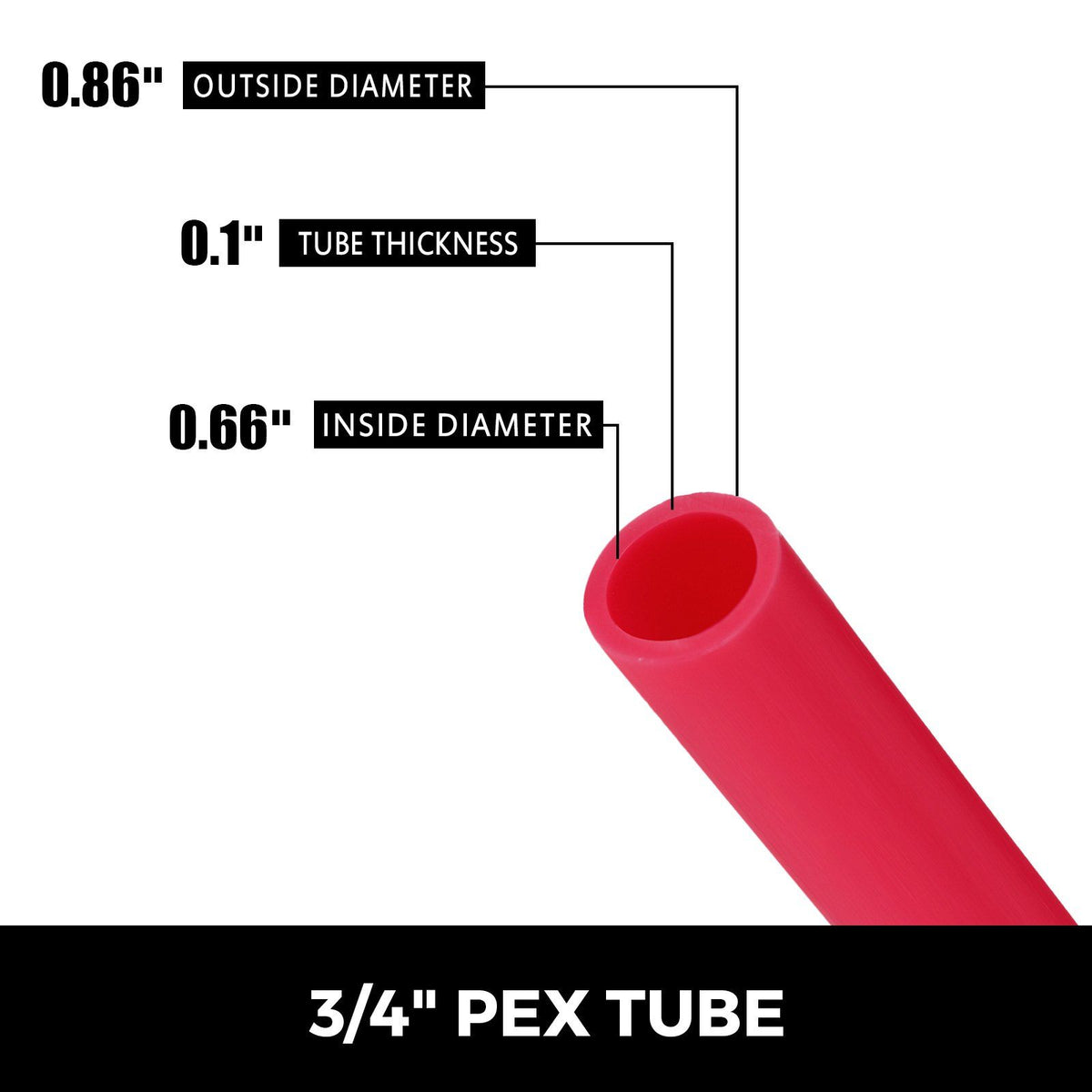

3/4" PEX Tube

Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 3/4"; Tube Length: 500ft, longer than normal products.

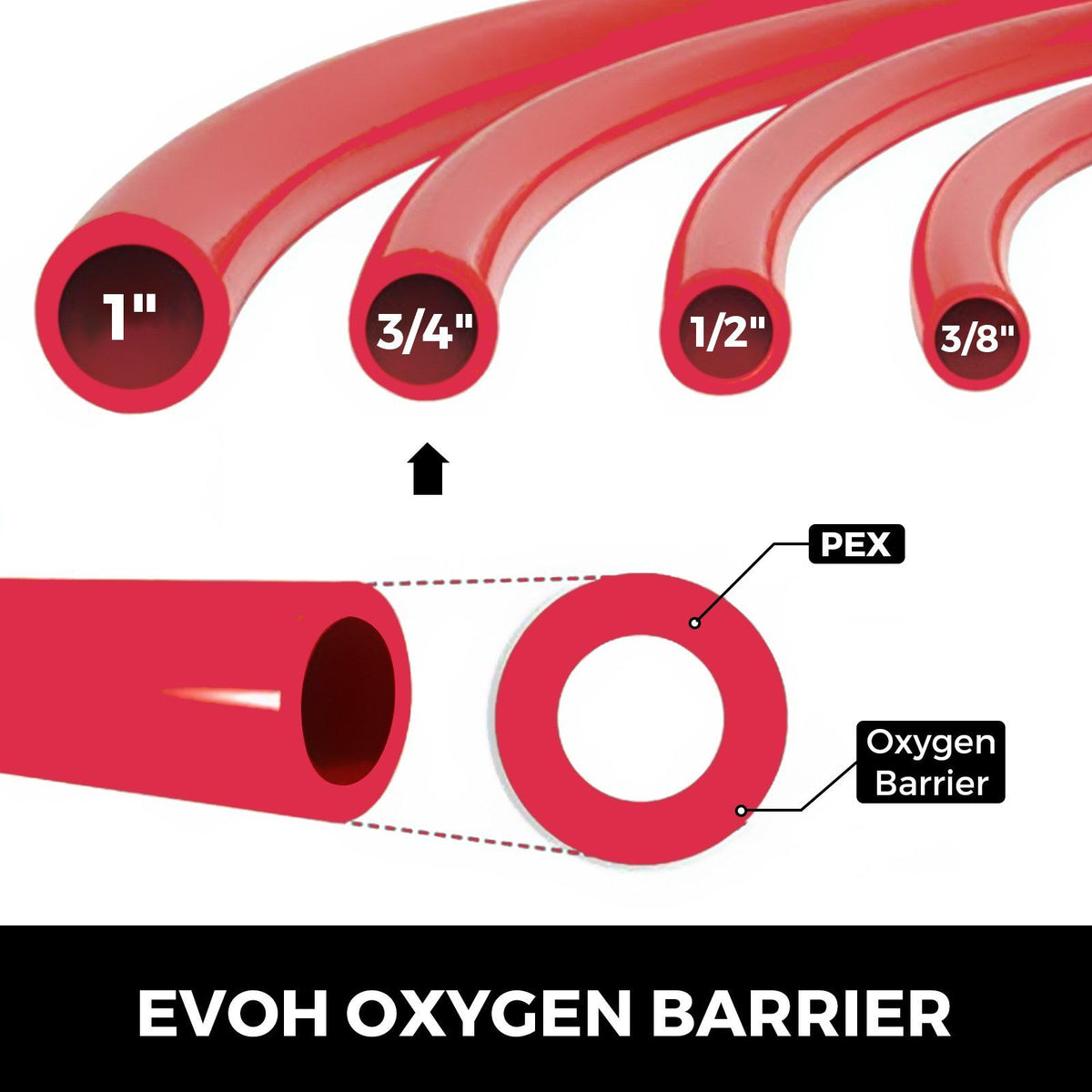

EVOH Oxygen Barrier

Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components.

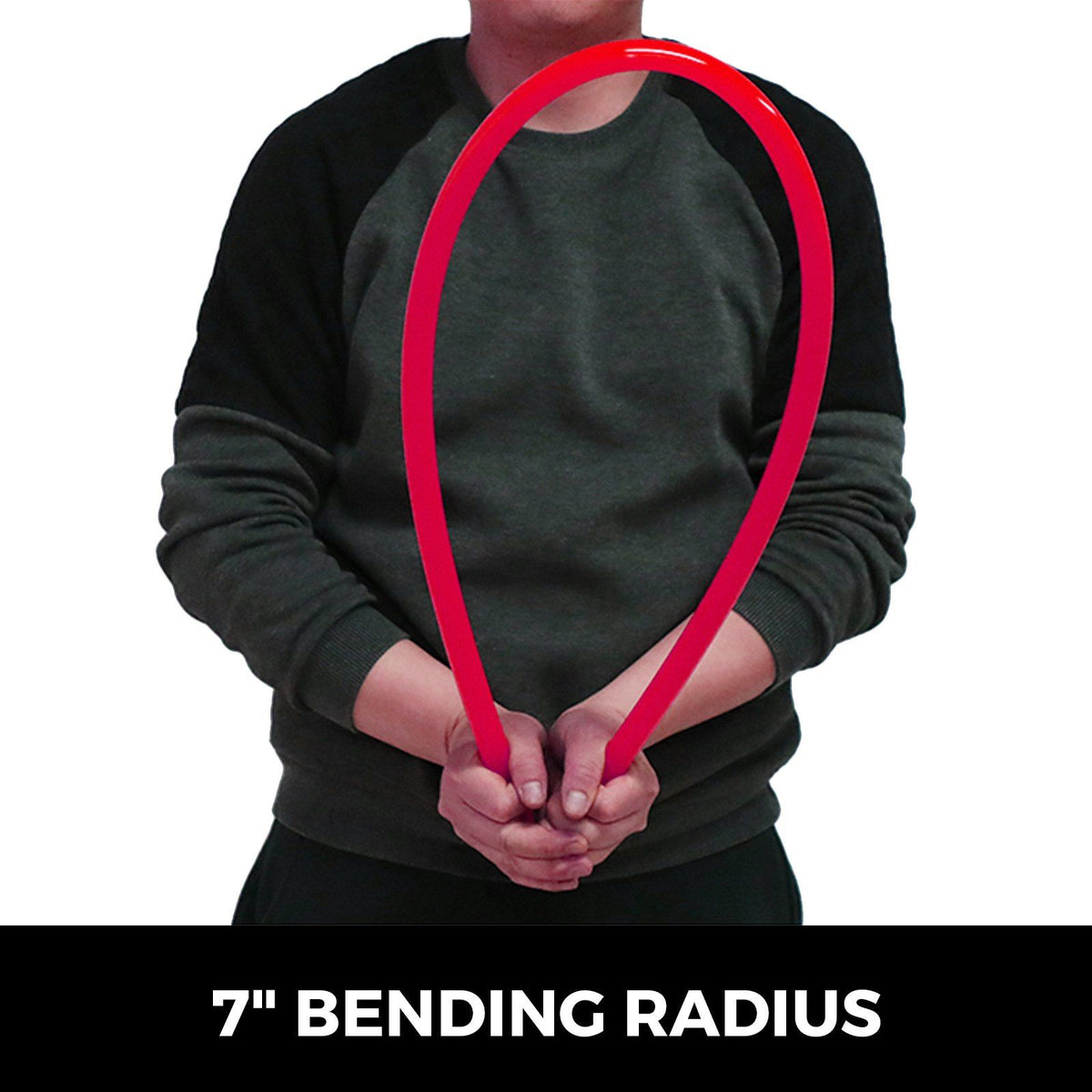

7" Bending Radius

Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.7" bending radius(industry standard for 3/4" pipe) and excellent flexibility.

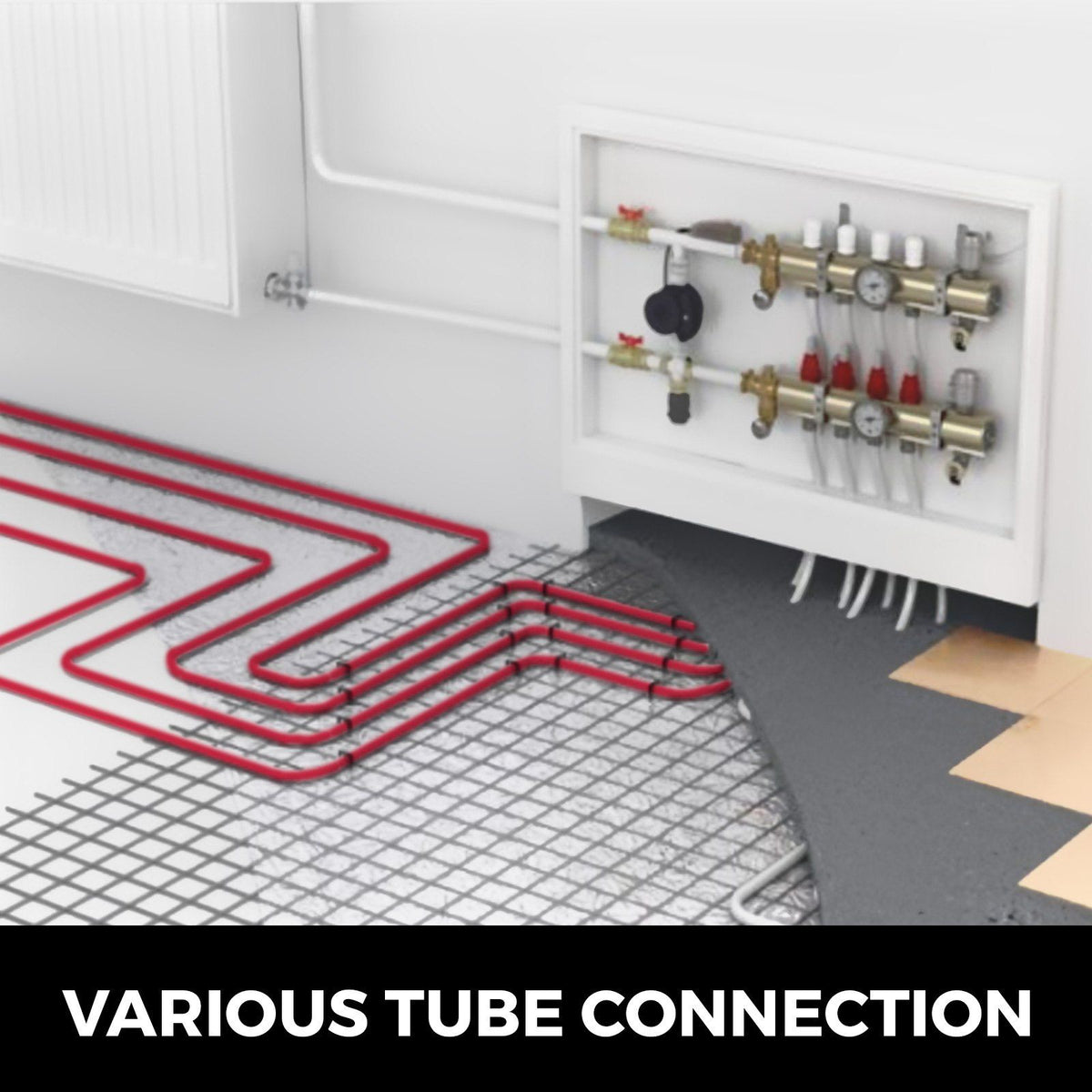

Various Tube Connection

Can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.

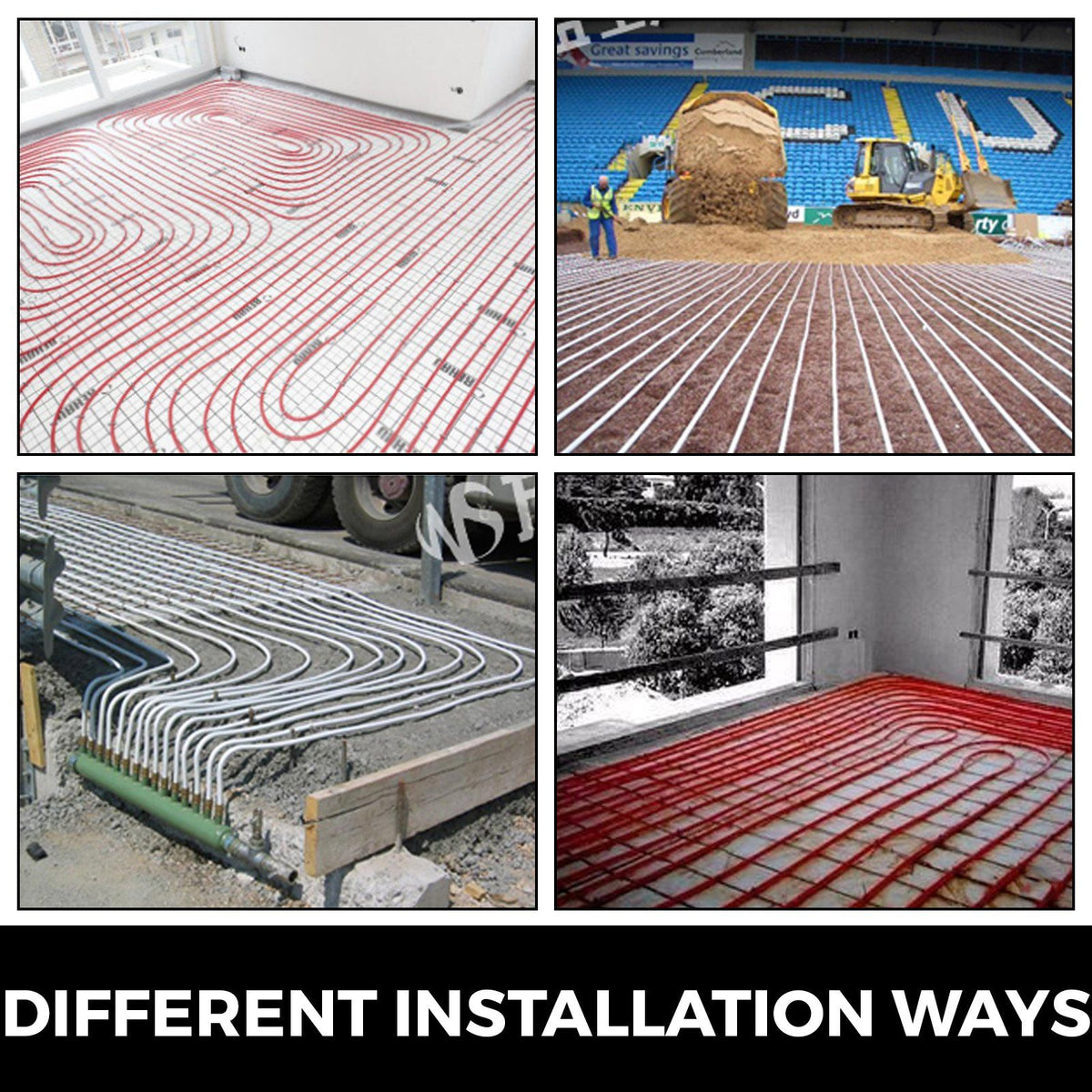

Different Installation Ways

Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; "Sandwich" type radiant heating; Snow & ice melting systems etc.

Wide Application Places

Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.

Package Content

• 1 x 500ft 3/4" Oxygen Barrier PEX Tube

Specifications

• Type: PEX Tube(Oxygen Barrier)
• Total Length: 500ft
• Nominal Diameter: 3/4"
• Inside Diameter: 0.66"
• Outside Diameter: 0.86"
• Tube Thickness: 0.1"
• Pressure Ratings: 188-217psi at 65℉; 101-108psi at 203℉
